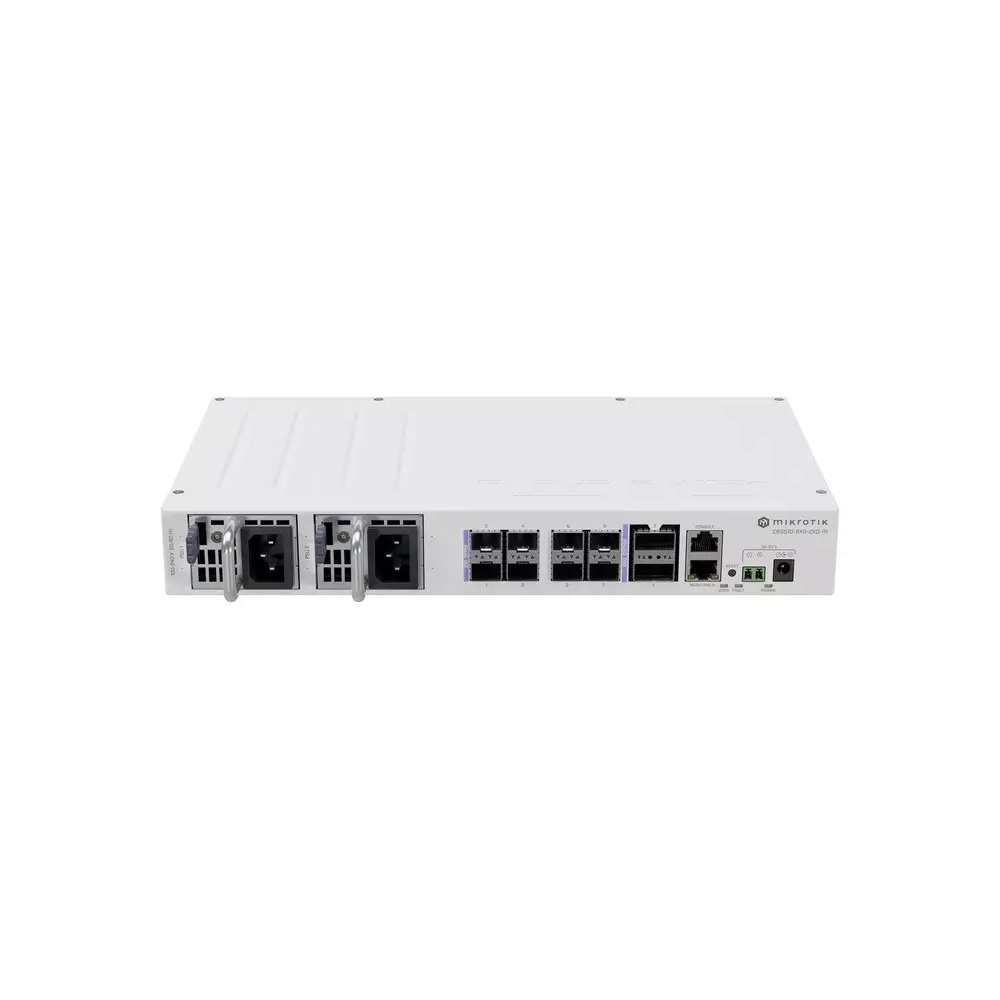

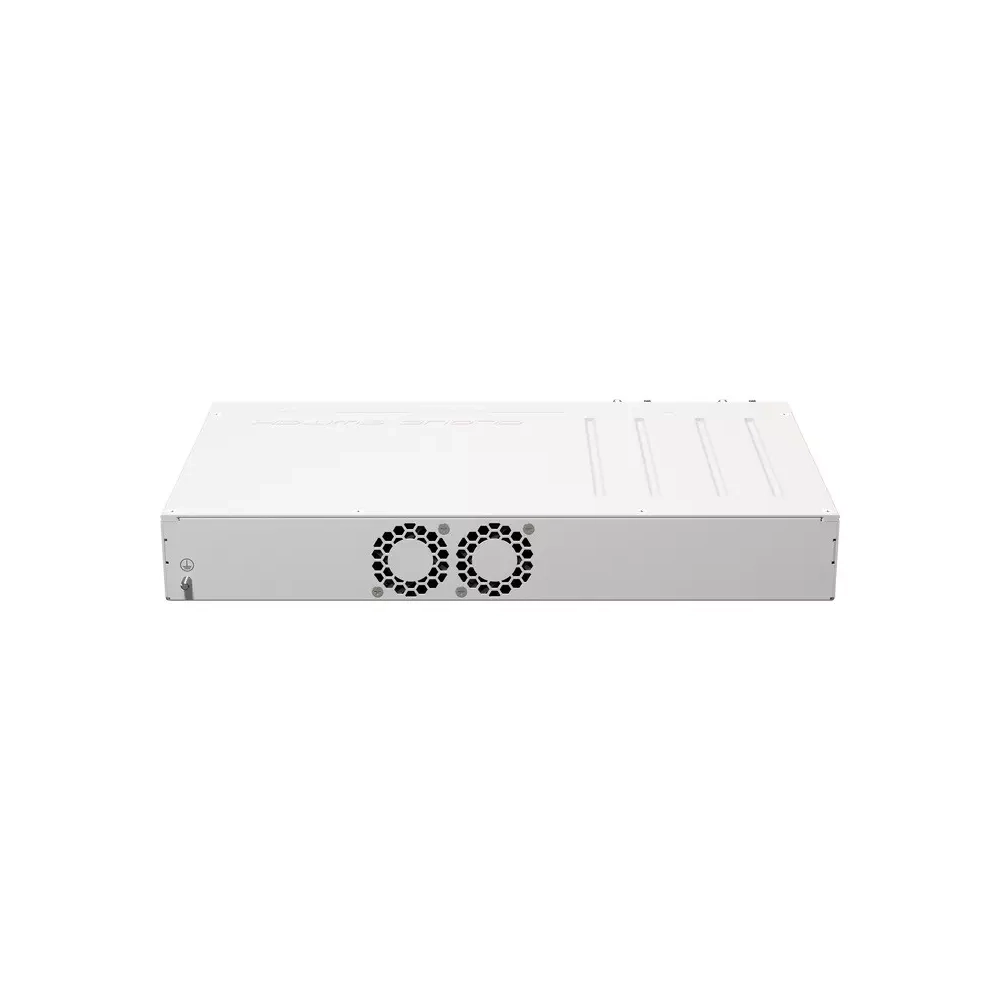

MIKROTIK CRS510-8XS-2XQ-IN, CLOUD ROUTER SWITCH

MikroTik CRS510-8XS-2XQ-IN Cloud Router Switch

• 19″ rackmount solution

Specifications
Design: desktop, rackmount
Architecture: MIPSBE
Processor: QCA9531
Number of CPU cores: 1
CPU frequency: 650MHz
Operating system: RouterOS v7 – L5
RAM size: 128MB
Storage size: 32MB, flash
Power supply:

• 2x AC (mains 100-240V)
• 3x DC (PoE, DC connector, DC terminal block 2-pin)

Power supply via PoE: 802.3bt, 42.5-57V DC
Power supply via connector/terminal block: 36-57V DC
Redundant power supply: yes
Maximum power consumption: 45W
Ethernet: 10/100Mbps (1x RJ-45)
Optical interface:

• 8x 25Gbps SFP28
• 2x 100Gbps QSFP28

Serial port: 1x RJ45
Fan: 2x 40x40mm
Dimensions: 330x44x185mm
