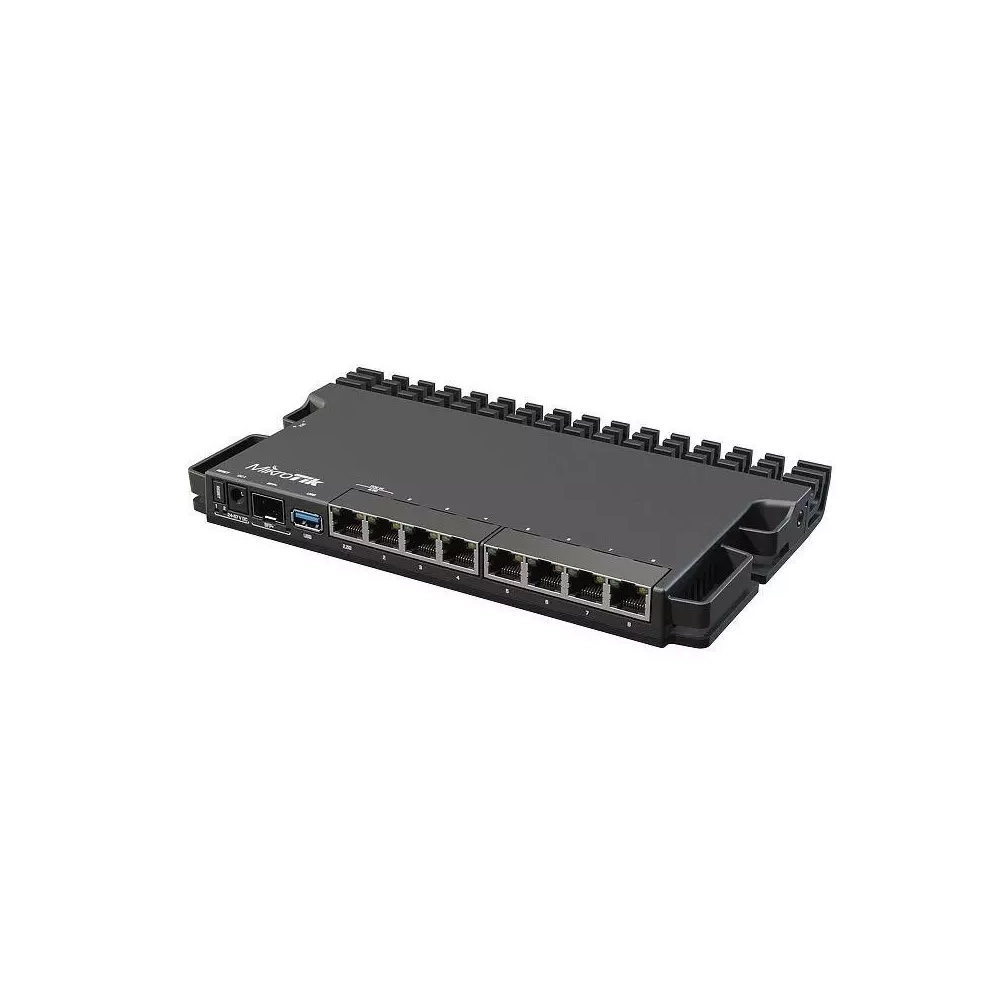

MIKROTIK RB5009UG + S + IN, HOME “HEAVY-DUTY HOME LAB” ROUTER

The new model RB5009UG + S + IN is declared by the manufacturer as feedback on user requests from Mikrotik User Meetings for a powerful and robust home router.

The active element has nine metallic ports and a USB 3.0 port.
Seven ports are gigabit ethernet, one is 2.5 gigabit ethernet and the last is a 10G SFP + bay.

All ports are connected to a powerful switch-chip from the Marvell Amethyst family and a 10Gbps full-duplex line to the Marvell Armada Quad-core ARMv8 1.4 GHz processor.

The CPU and switch-chip are located at the bottom of the board, so the entire robust metal casefunctions as a massive passive heatsink.

In addition to powering via an adapter or terminal block, the RouterBoard also supports active PoE + power supply according to the 802.3af/at standard.

Using the K-79 Rackmount Kit, you can easily create a 1U set of four rack-mount routers.

The active element integrates the following functions and features:
• 7x Gigabit Ethernet ports
• 1x 2.5 Gigabit Ethernet port
• 10G SFP + shaft
• USB 3.0 input
• Durable metal cover
• Powerful quad-core processor
• 1 GB DDR4 RAM
• 1 GB NAND memory
• Designed for RouterOS v7 operating system
• three-way power supply – PoE, DC input, terminal block

Technical Specifications:
Product code: RB5009UG + S + IN
CPU: 88F7040 1.4 GHz
CPU architecture: ARM 64bit
CPU core count: 4
Size of RAM: 1 GB
RAM type: DDR4
Storage: 1 GB, NAND
Number of 1G Ethernet ports: 7
Number of 2.5G Ethernet ports: 1
Number of 10G SFP + ports: 1
USB port: 1 (3.0 type A)
Operating system: RouterOS (License level 5)
Switch chip model: 88E6393
Dimensions: 220 x 125 x 22 mm
Operating temperature: -40 ° C to + 60 ° C
PoE-in: 802.3af/at
Number of DC inputs: 3
Supported input voltage: 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
Power adapter nominal voltage: 24 V
Power adapter nominal current: 1.5 A
Max power consumption (without attachments): 14 W
Max power consumption: 20 W

Notice:
SFP + port only works with active DAC (Direct Attach Cables).
E.g. MikroTik S + DA0001/S + DA0003 passive DACs are not supported.
