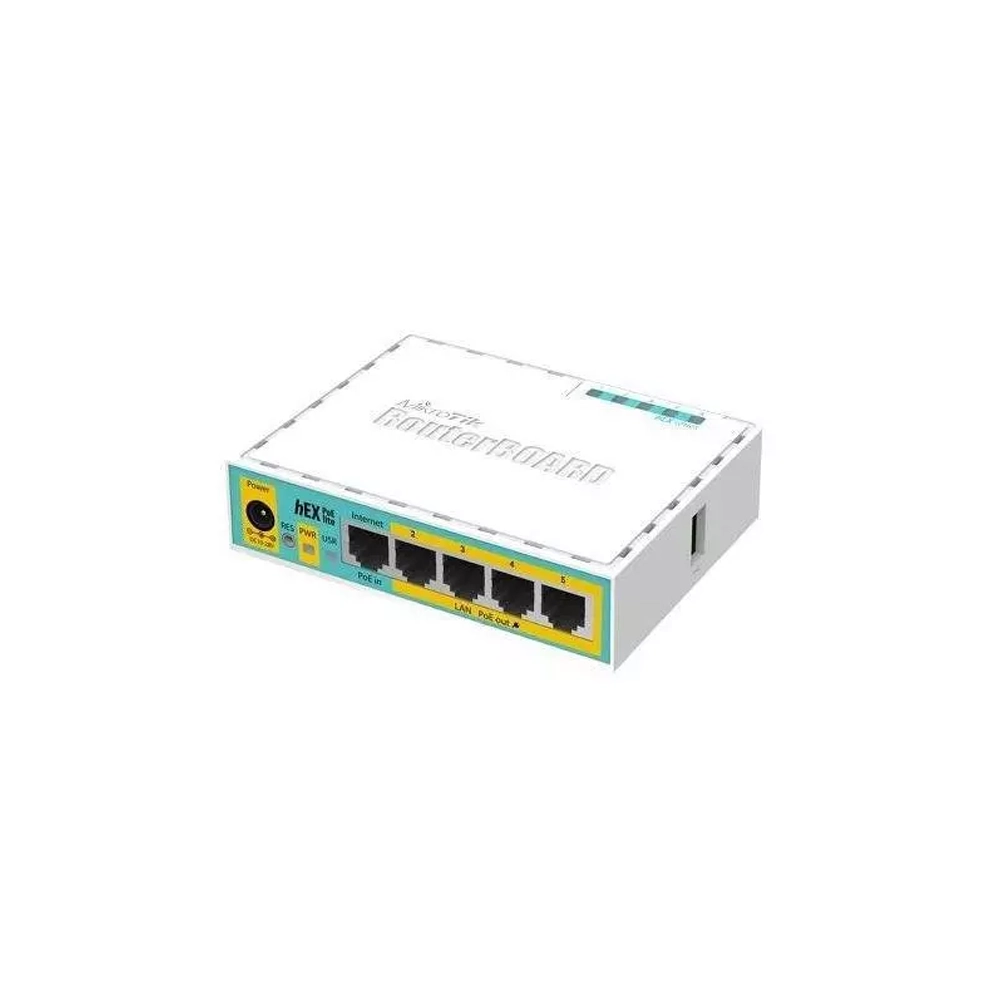

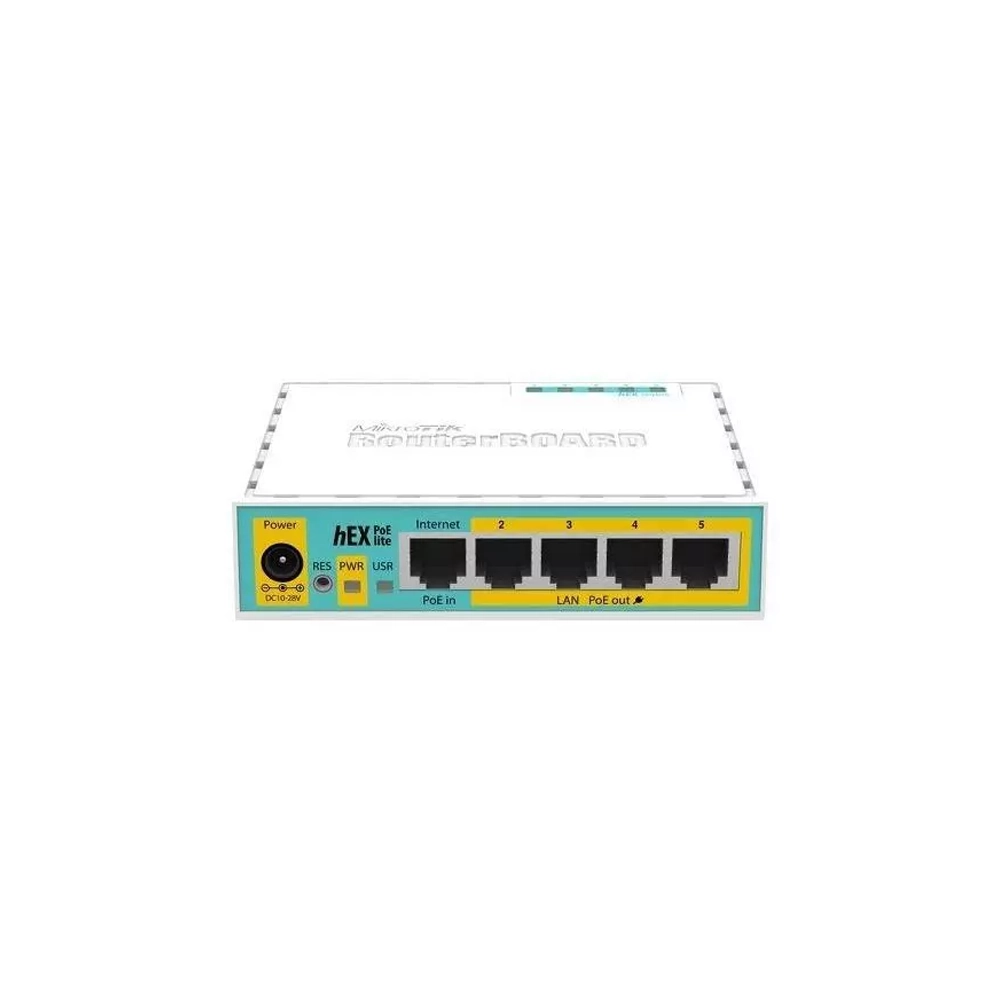

MIKROTIK RB750UPR2 650MHZ

Description

RB750UPr2 has 4 PoE ports (ports 2-5). This way, for example, other APs or routers can be powered. Thanks to the USB port, the device can be expanded with, for example, an external disk. RouterBoard comes with an L4 license.

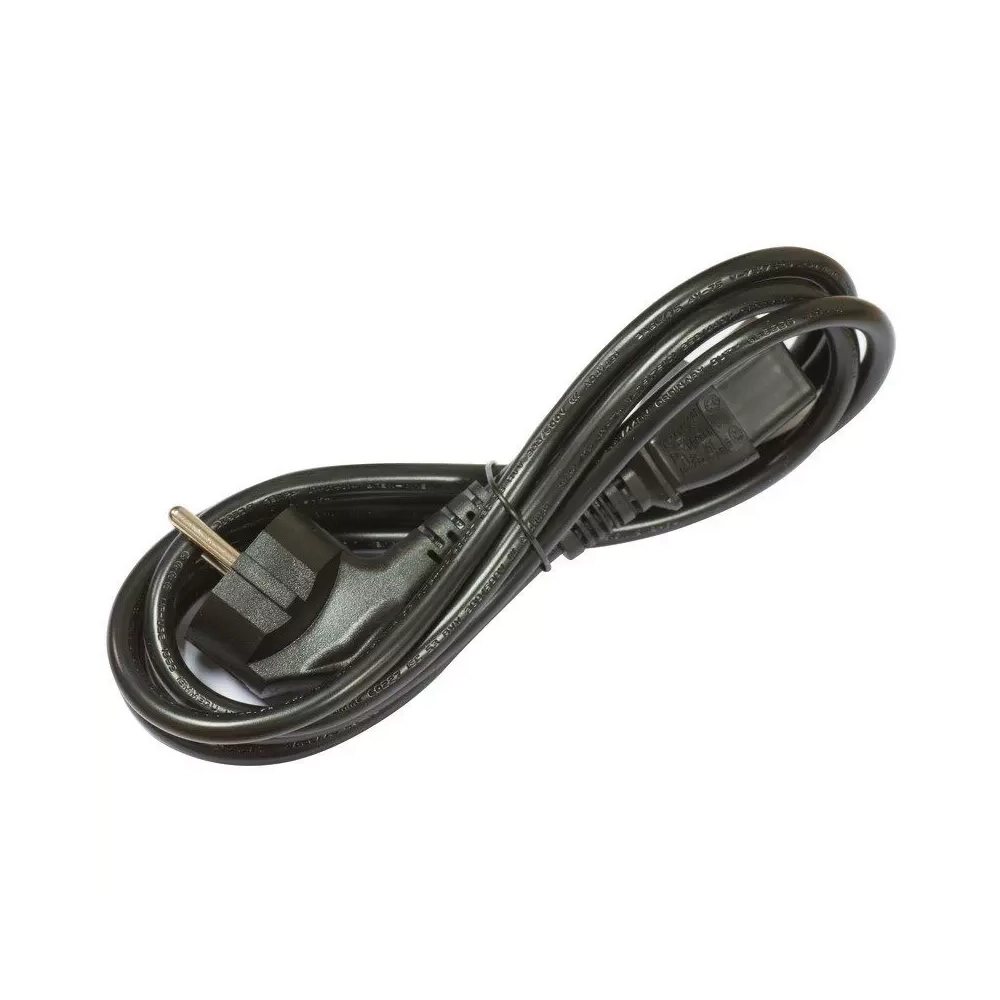

The RouterBoard can be powered not only using the classic jack connector, but also via PoE. A big advantage is the possibility of powering other devices via PoE. The maximum output per port is 1 A, then a total of max. 2.2 A (RouterOS MikroTik v. 5.20). A quality power adapter is also part of the package.

Technical specifications

Product code

• RB750UPr2

CPU nominal frequency

• 650 MHz

CPU core count

• 1

Size of RAM

• 64MB

10/100 Ethernet ports

• 5

10/100/1000 Ethernet ports

• None

MiniPCI slots

• 0

MiniPCI-e slots

• 0

Number of USB ports

• 1

Power Jack

• 1

Supported input voltage

• 6 V – 30 V

PoE in

• Yes

PoE out

• Yes

Voltage Monitor

• Yes

CPU temperature monitor

• Well

PCB temperature monitor

• Yes

Dimensions

• 113x89x28mm

Operating System

• RouterOS

Operating temperature range

• -30 + 70 C

License level

• 4

Current Monitor

• Yes

CPU

• QCA9531

Max Power consumption

• 3W

SFP ports

• 0

SFP+ ports

• 0

USB slot type

• USB type A

Serial port

• None
