MIKROTIK RB760IGS 880MHZ

System solutions for MikroTik platforms for wireless Internet providers.

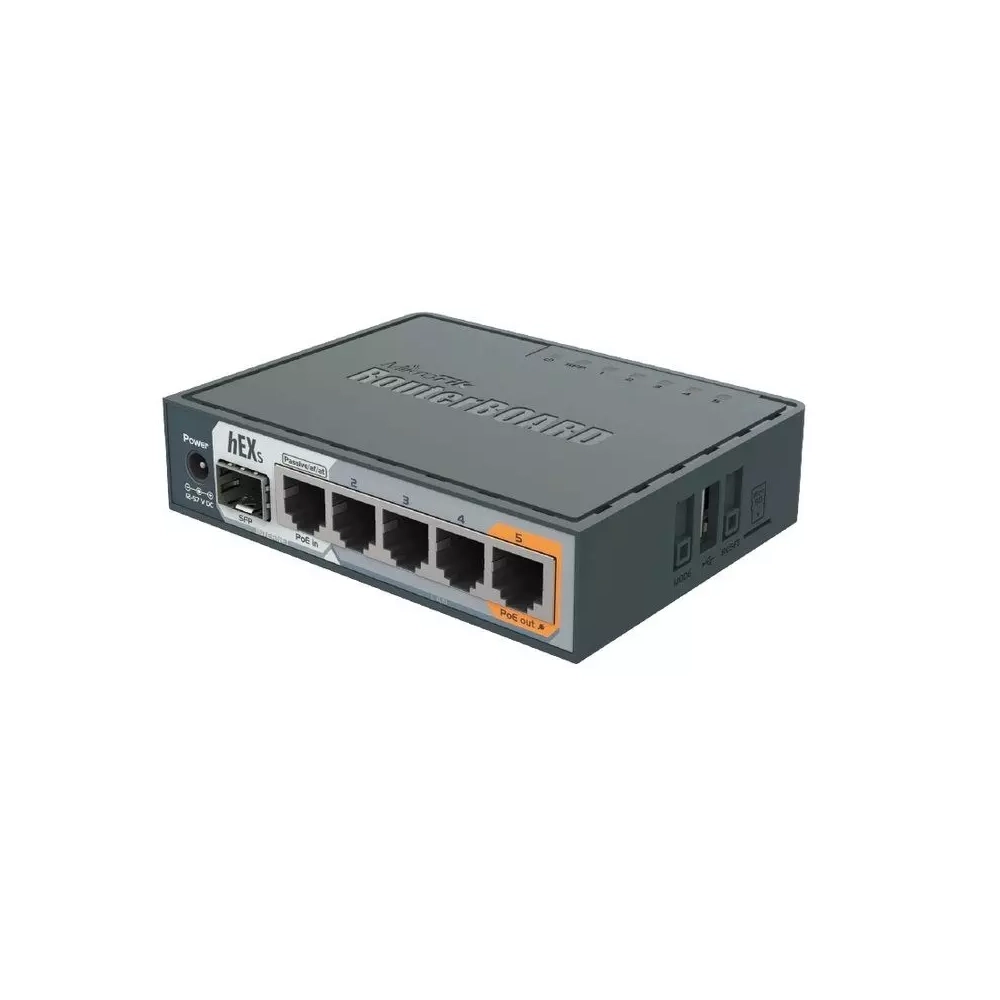

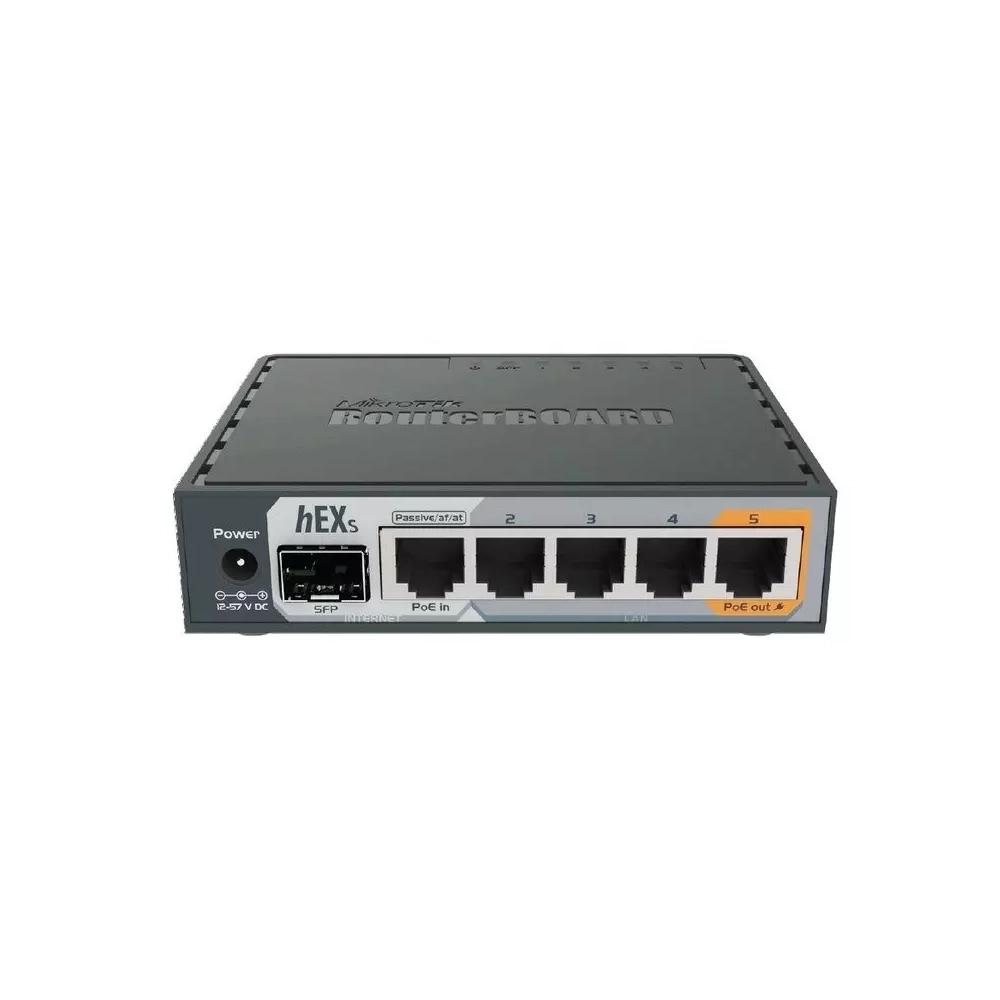

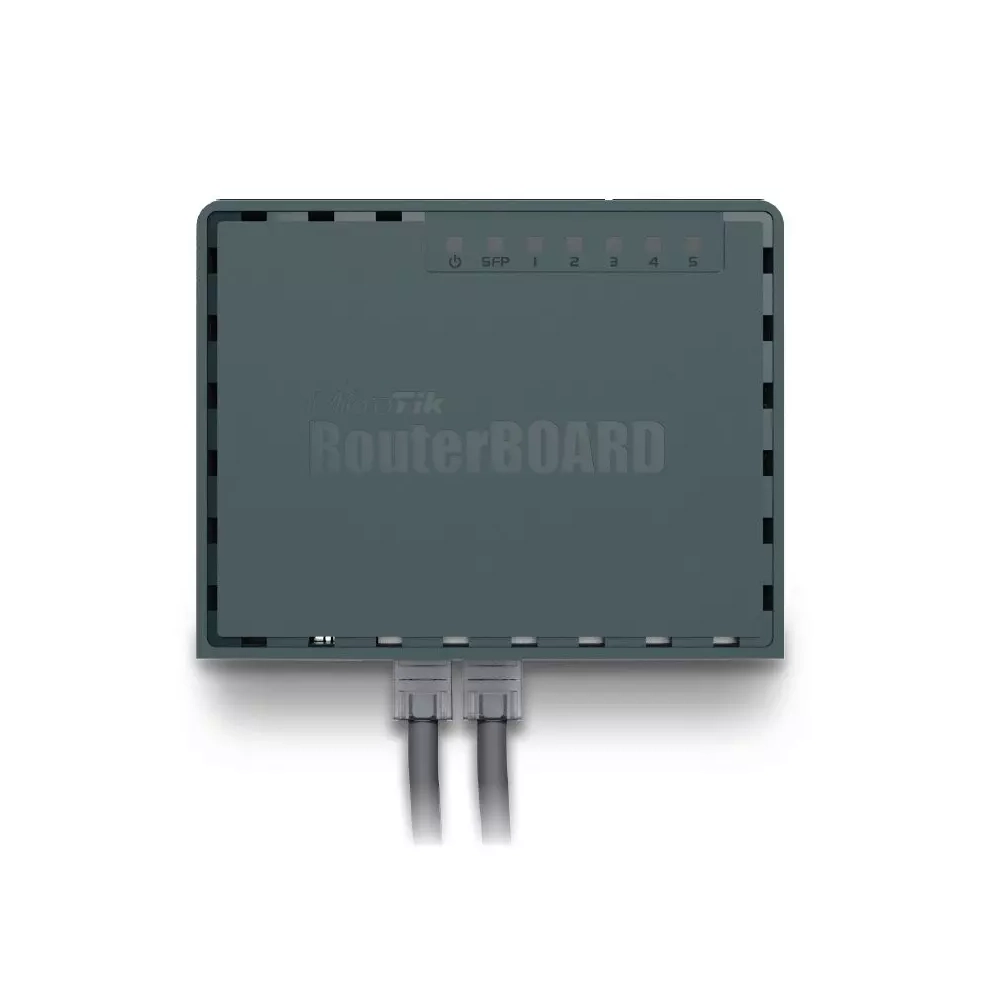

RouterBOARD hEX S is a small 5-port Gigabit Ethernet router with one 1.25Gbit/s SFP port supplied as a complete SOHO indoor unit.

Powered by the 880MHz dual-core processor MT7621A, 256 MB RAM, USB Type A port, microSD card slot.

PoE output (passive PoE) on Ethernet port # 5.
PoE input (802.3af/at, passive PoE) on Ethernet port # 1.

The device supports IPsec hardware encryption (~ 470 Mbps).

Pre-installed ROS L4.

Technical Specifications:
Product code: RB760iGS
CPU: MT7621A
CPU nominal frequency: 880 MHz
CPU core count: 2
CPU threads: 4
Size of RAM: 256 MB
10/100/1000 Ethernet ports: 5
SFP cages: 1
PoE in: Passive, 802.3af/at
PoE out: Passive PoE up to 57 V (Ether5)
Supported DC and DC input voltage: 12 – 57 V
Max out per port output (input <30 V): 500 mA
Max out per port output (input> 30 V): 500 mA
Max total out: 500mA
PCB temperature monitor: Yes
Voltage monitor: Yes
USB slot: type A
MicroSD slot: 1
Operating temperature: -40 ° C to + 70 ° C
Dimensions: 113 x 89 x 28 mm
License level: 4
Operating System: RouterOS
Max. Power consumption: 11 W
